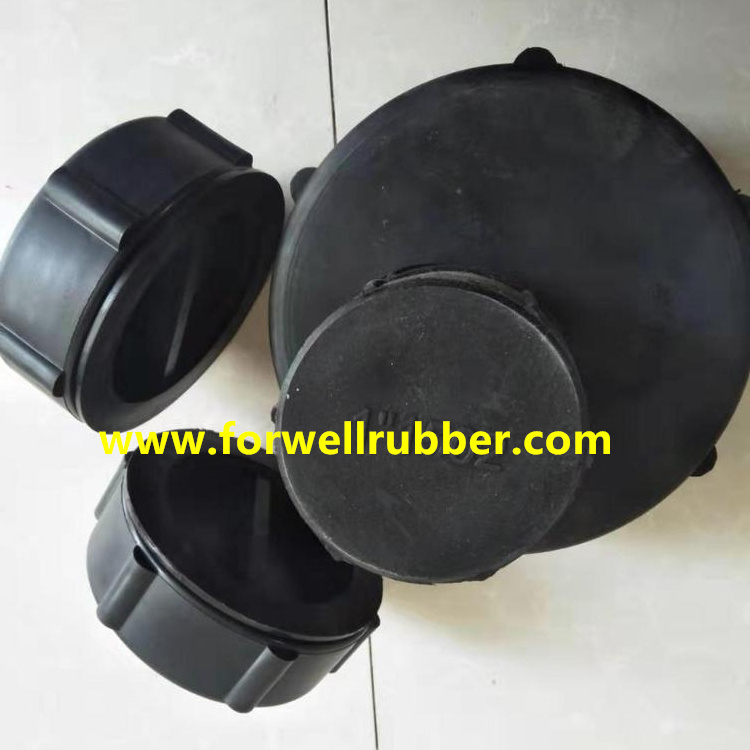

HAMMER UNION CAPS AND PLUGS FIG 206
The Caps and plugs designed to protect the hammer union thread at lower cost,which is much easier to be installed and removed from the oil tools.
HAMMER UNION known as pipe connection or union.It is a common pipe connection that can be easily installed and disassembled. A pipe fitting that connects two pipes, allowing the two pipes to be separated without moving the pipe, facilitating maintenance. It includes three parts: threaded head, ball head, and tight cap. The sealing surfaces of the union include a flat surface (with gasket), a spherical surface, and a conical surface. The connection methods of unions and pipes include butt welding, socket welding, and threading. HAMMERUNION: Hammer union, union, three claw, airfoil union is suitable for standard and acidic working environments, with working pressures ranging from 1000 psi to 15000 psi. The specification range is from 1 "to 8"; The unions are provided with color markings for easy identification; Can be interchanged with the products of most union manufacturers; Suitable for connection of threaded ends, butt welded ends, and sealed ends.
